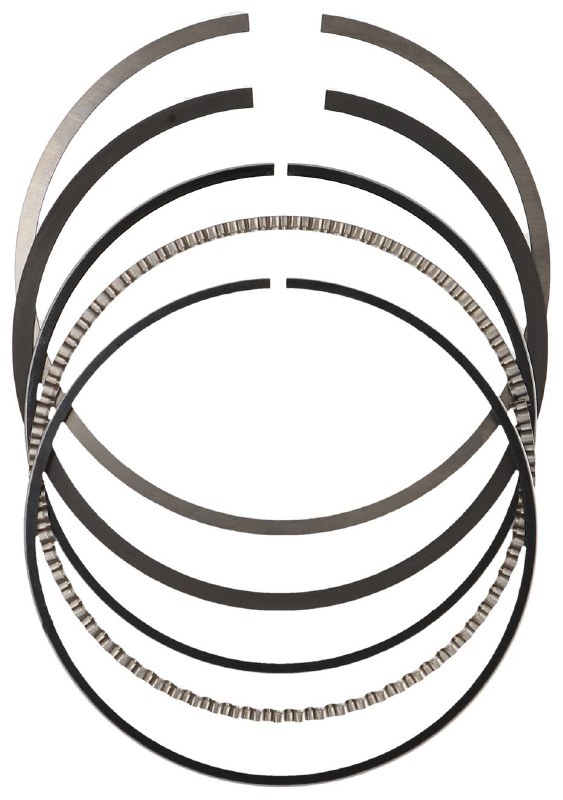

Piston Ring Set For: JE 685

JE Pistons Pro Seal Piston Rings For JE 685 Piston

Part number: J91501-4030-5


Description:

JE Pistons Pro Seal piston rings feature barrel-faced top rings made from premium ductile iron. They also have a special high-tech, friction-reducing, plasma-moly inlay on the face that combines molybdenum, nickel, chrome, and trace elements. The results are higher temperature resistance, reduced wear, better ring sealing, and reduced flaking. The second rings are a taper-faced, reverse-torsional design with a special phosphate coating. The oil-control rings are available in your choice of either low or standard-tension types.


Specifications:

Brand: JE Pistons

Manufacturer's Part Number: J91501-4030-5

Part Type: Piston Rings

Product Line: JE Pistons Pro Seal Piston Rings

UPC: 193564240798

Bore (in.): 4.030 / 4.035 in.

Bore (mm): 102.360mm

File Fit: Yes

Gapless: No

Gas Ported: No

Top Ring Included: Yes

Top Ring Thickness: 1.2mm

Top Ring Material: Carbon steel

Top Ring Facing Material: Plasma-moly

Second Ring Included: Yes

Second Ring Thickness: 1.0mm

Second Ring Material: Ductile iron

Second Ring Facing Material: Phosphate coated

Oil Ring Included: Yes

Oil Ring Thickness: 3.0mm

Oil Ring Tension: Low

Oil Ring Material: Carbon steel

Quantity: Sold as 1 set.
